ELIMINATOR SERIESPLANETARY GEARHEADS

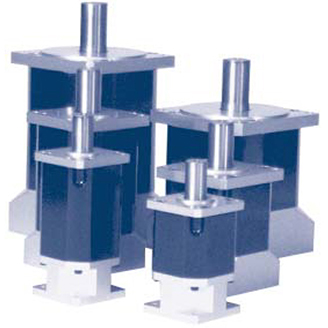

The Eliminator Series (EP) is Carson’s economical high-end line of planetary gearheads designed for strenuous applications. Made in sizes 17, 23 & 34 with standard ratios from 3:1 to 100:1. We are capable of producing ratios up to 10,000:1.

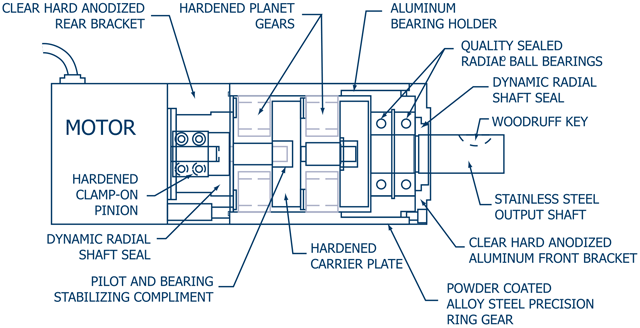

CORE FEATURES
- Dynamic radial shaft seal at the input and output
- Enclosure rating: IP65
- Operating temperature range: -20°F to 250°F
- Aluminum hard anodized rear & front brackets with a surface hardness of 60 rockwell
- Alloy steel powder coated ring gear
- Quality sealed radial ball bearings
- Stainless steel output shaft
- Hardened precision gearing throughout
- Precision clamp on pinion with four clamping screws to eliminate slippage
